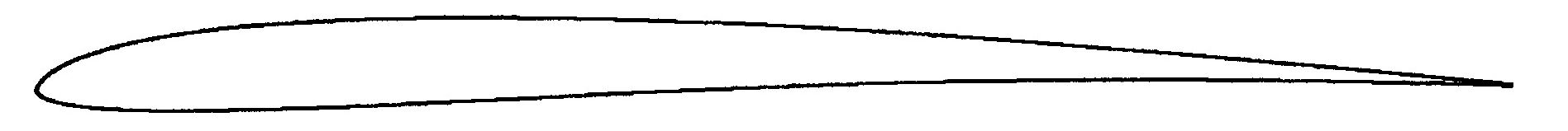

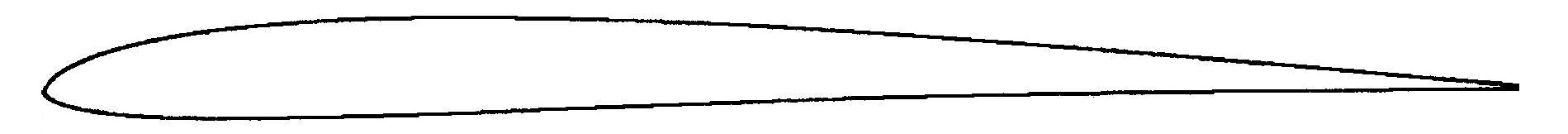

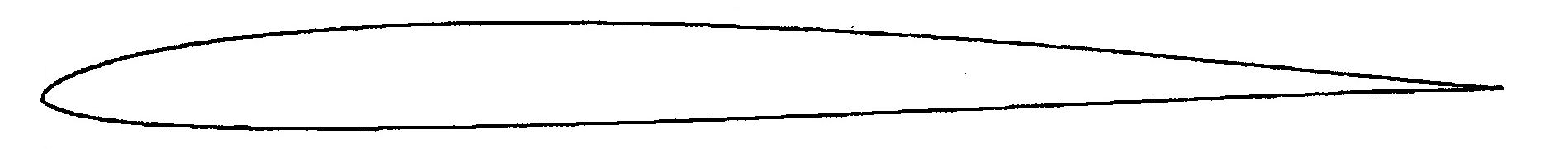

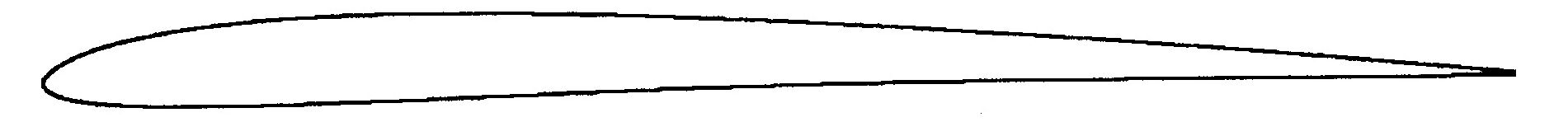

Airfoils Many different airfoils were used by the planes. With the use of XFOIL by Professor Mark Drela, many designers have been trying to optimize the airfoils for their new HLG ship. The S and SD airfoils, along with other airfoil software sites, can be found at UIUC. The AG series airfoils can be found at the Charles River Radio Controllers web site. Over the past few years we have seen many new airfoils stemming from experimentations with camber and thickness starting with these airfoils. Some of the standard airfoils were the SD 6063 and the AG series airfoils. Brian Buass and Phil Pearson/MapleLeafDesign use a new series of airfoils developed by Joe Wurts. General trends: Many new airfoils, and consequently aircraft designs, address the tasks of the IHLGF. The main goal is to launch high. On the Friday practice day, many pilots were trying to out-launch each other. Generally, these high launches require a lot of practice to accomplish. Some wings failed in compression or delamination. Trying to develop the high launches still further, Joe Wurts delaminated his polyhedral Raptor. Many of us, who are not as physically agile, know the great heights cannot be reached using our skills, so our designs tend to favor ships having lower sink rates. It is always a tradeoff. Times in the contest were comparable. Those planes which were thrown higher often had higher sink rates even though they could cover more ground. Those ships which could not be launched as high, had lower sink rates. The designer and pilot need to look at the target times required by the contest tasks. For example, if a 60 second target time is required, e. g. Round 1, then a ship which launches to 90 ft needs only a sink rate of 1.5 ft/sec in order to make the 60 seconds. For a ship that can only launch to 60 feet, the required sink rate is approximately 1 ft/sec. SD6063 ![]() AG04 ![]() AG08 For example, the modified Encore wing by John

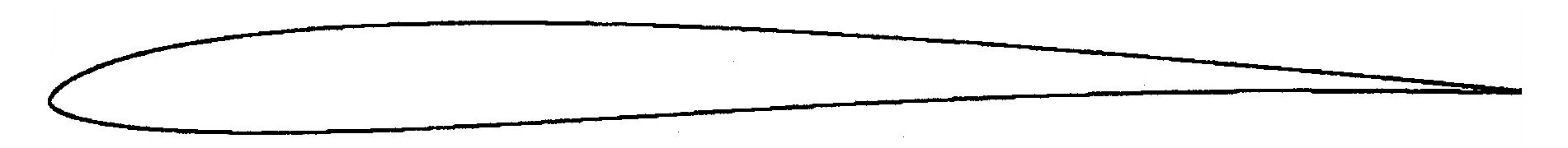

Asplund and Gordon Jennings is based on the AG16 airfoil with the thickness
reduced to 6.5% and the camber reduced to 1.5%. Some thoughts on
these changes correspond to the need to launch high, penetrate into
the wind, and reduce the sink rate. Thinning the section permits
faster upwind speeds, and reducing the camber retains just enough
lifting ability of the airfoil to support the plane and at the same
time it reduces the drag on the wing. Since many of these
airfoils are custom, their coordinates are not available.
|
|
