International Hand Launch Glider Festival |
Plane: Arius II |
Click here to reach: |

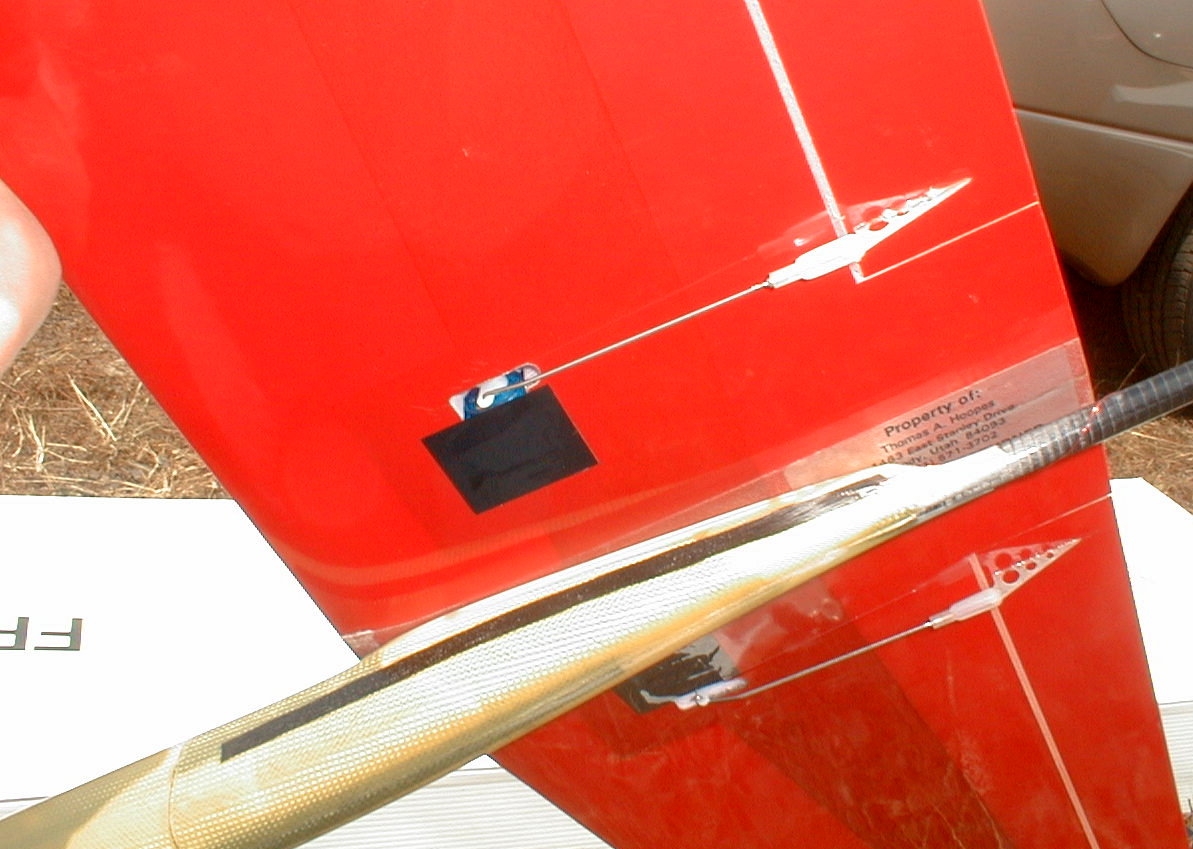

| Plane Info: Wingspan: 59" PlaneWeight: 9.5 oz WingArea: 359 sq.In. WingType: Dihedral Wing Info: TE Sweep: Straight TE Root Chord: 7.5" First BreakChord: 6.75" First Panel Length: 15" Tip Chord: 3.5" Center Dihedral: 8 degrees Poly Dihedral: Polyhedral Airfoil Root: MH-32 thinned Airfoil Tip: MH-32 thinned Flap Info: Flaperons Wing Material: Fiberglass over Pink Foam, spyder foam for tip grip, ProSet epoxy |

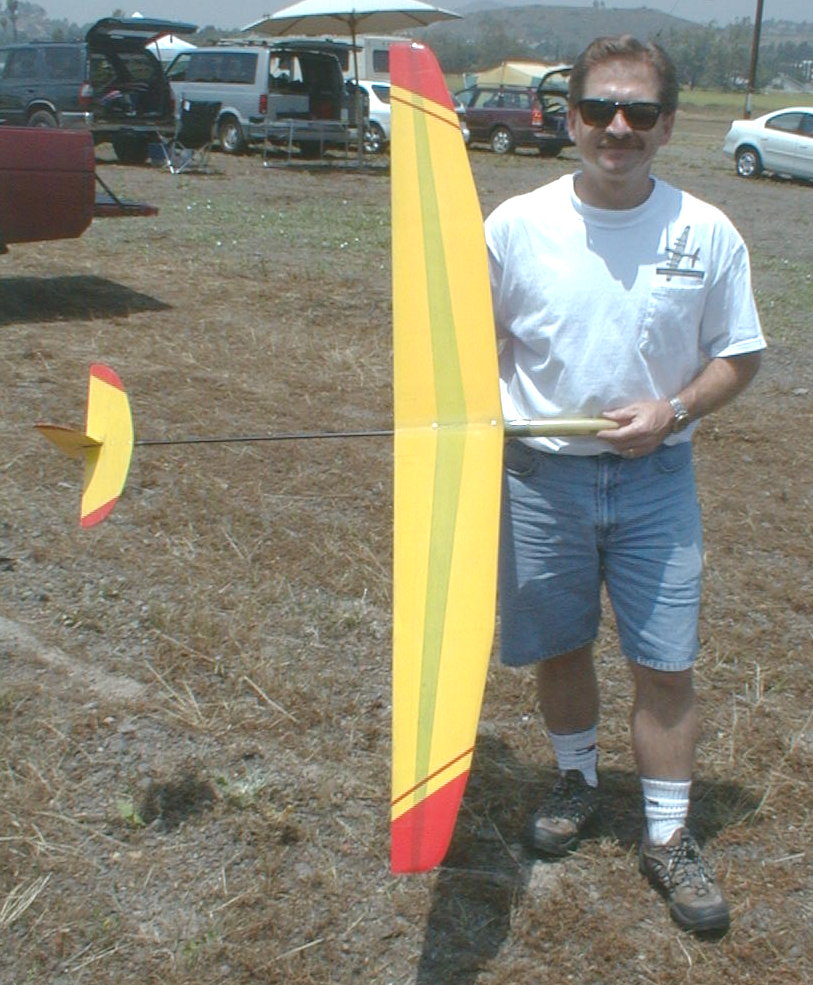

Arius II
|

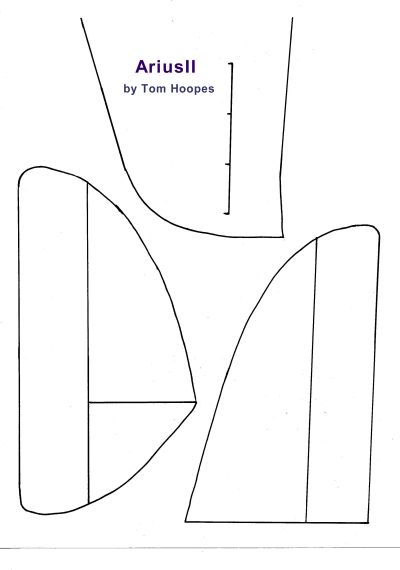

Stab/Elevator Info: Stab Area: 40.5 sq.in. Stab Root: 4.75" Stab Tip: 2" Stab Span: 12" Stab Material: Balsa Stab Profile: Semi-Elliptical, Flat, Shaped edges Rudder Info: Rudder Area: 16 sq.in. Rudder Root: 3.5" Rudder Tip: 1.5" Rudder Span: 5" Rudder Material: Balsa Rudder Profile: Semi-Elliptical, Flat, Shaped edges R/E Planform: Click Here |
| Radio Info: JR 8103, RX: FMA Extreme 5 Functions: Rud, Elev, Flaperons Servos: HS-50s |
Fuselage Info: Main Fuselage: Molded Kevlar (from RaptorRC) Tailboom Material: Carbon Fiber Avia G-Force Tailboom TE to Elevator Hinge: 20.5" Tailboom TE to Rudder Hinge: 23" Tail Group Type: Conventional, Low Tail |
Launching Technique: Launch Method: Discus Grip: Wingtip Grip |
Additional Pictures
|
|
|
