International Hand Launch Glider Festival |

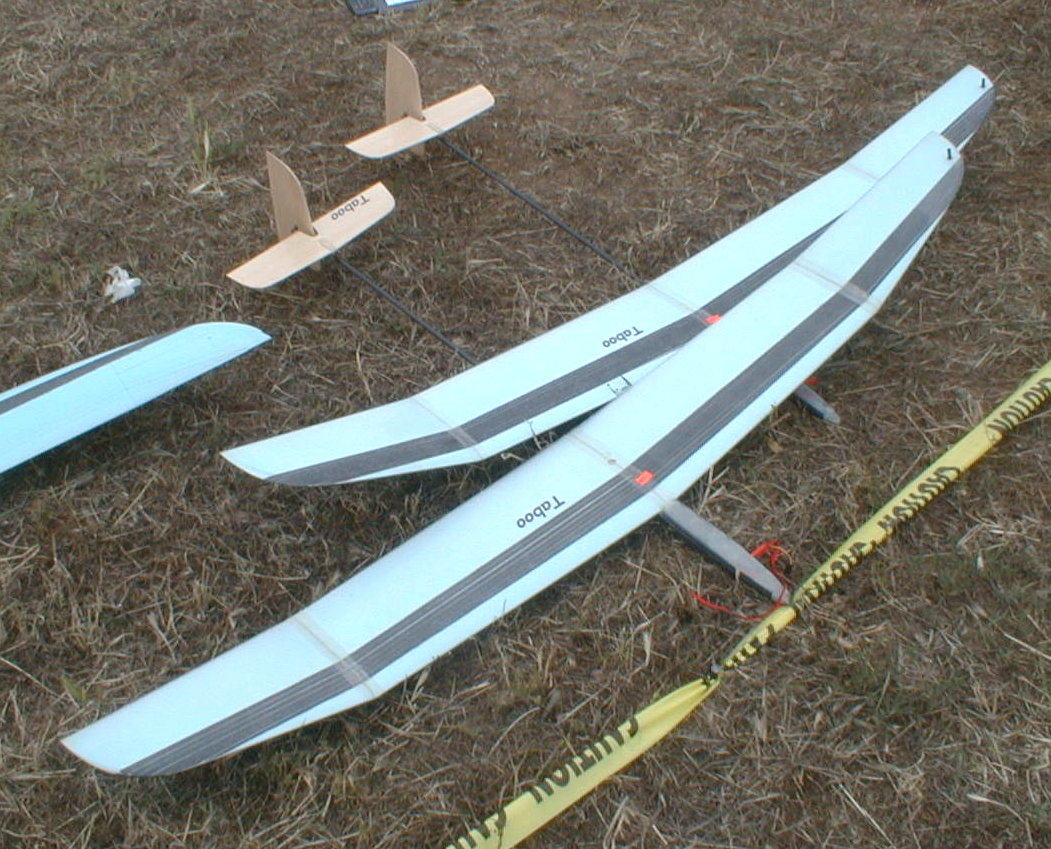

Plane: Taboo |
Click here to reach: |
| Plane Info: Wingspan: 58" Plane Weight: 9 oz Wing Area: 350 sq.in. Wing Type: Dihedral Wing Info: Root Chord: 180 mm First Break Chord: 155 mm First Panel Sweep: 10 mm Second Break Chord: 95 mm Second Panel Sweep: 20 mm Poly Dihedral: Dihedral Airfoil Root: AG04 Airfoil Tip: AG08 Wing Material: Fiberglass over blue foam, CF tow cap spars. The wings have 45deg biased fiberglass skins. |
Taboo |
Stab/Elevator Info: Stab Area: Stab Root: 75 Stab Tip: 50 mm Stab Span: 280 mm Stab Material: Balsa vacuum bagged with 0.75oz fiberglass Stab Profile: Elliptical, Flat, Shaped edges Rudder Info: RudderArea: Rudder Root: 95 mm Rudder Tip: 65 mm Rudder Span: 200 mm Rudder Material: Balsa vacuum bagged with 0.75oz fiberglass. Rudder Profile: Elliptical, Flat, Shaped edges R/E Planform: Not Available |
| Radio Info: JR 783,
RX Hitec 555 Functions: Rud, Elev Servos: HS-55 Battery: 110 mAh |
Fuselage Info: Main Fuselage: Fiberglass Tailboom Material: Carbon Fiber Tapered Tube, G-Force SUL Tailboom TE to Elevator Hinge: 520 mm Tailboom TE to Rudder Hinge: 580 mm Tail Group Type: Conventional, Low tailgroup |
Launching Technique: Launch Method: Sidearm Grip: Finger Peg |
