Plane: Raven
|
Click here to reach: |
| Plane Info: Wingspan: 59" PlaneWeight: 8.2 oz WingArea: 365 sq.in. WingType: Polyhedral Wing Info: Root Chord: 7.25" First Break Chord: " First Panel Length: 21" Second Break Chord: 6" Second Panel Length: 9" Tip Chord: 3.5" Center Dihedral: 4-5" First Break Dihedral: 3.5" Poly Dihedral: Polyhedral Airfoil Root: Ag16 Airfoil Tip: Ag16 Wing Material: Fiberglass, Carbon over Blue Foam |
Raven |

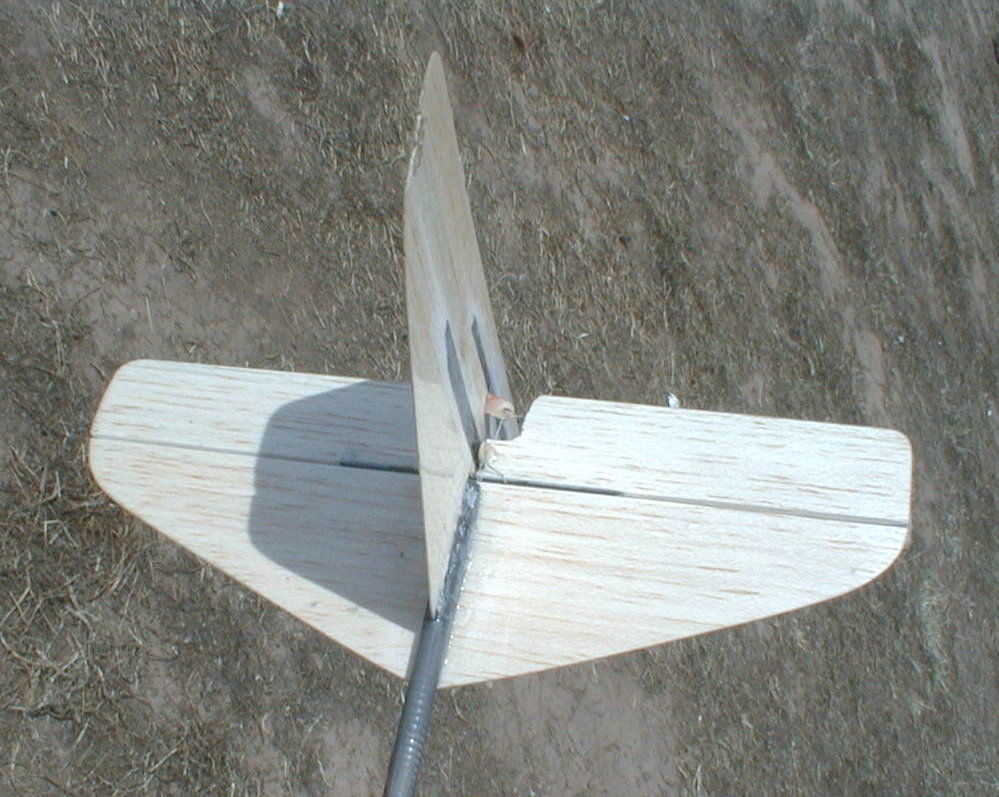

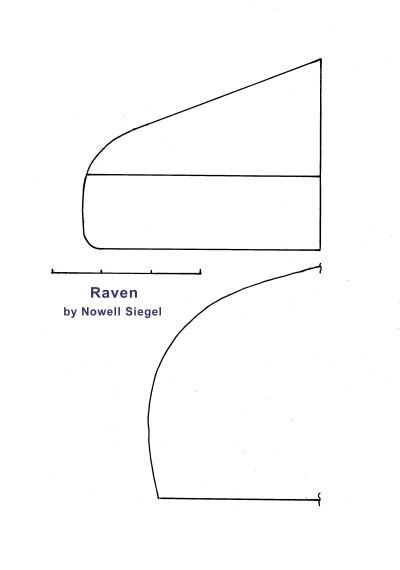

Stab/Elevator Info: Stab Area: 27 sq.in. Stab Root: 3.75" Stab Tip: 2" Stab Span: 9.5" Stab Material: Balsa Stab Profile: Flat, Shaped edges Rudder Info: Rudder Area: sq.in. Rudder Root: 3.75" Rudder Tip: 2" Rudder Span: 9.5" Rudder Material: Balsa Rudder Profile: Flat, Shaped edges Tail Mount: Fixed R/E Planform: Click Here |
| Radio Info: RX 555 Functions: Rud, Elev Servos: CS-10s |

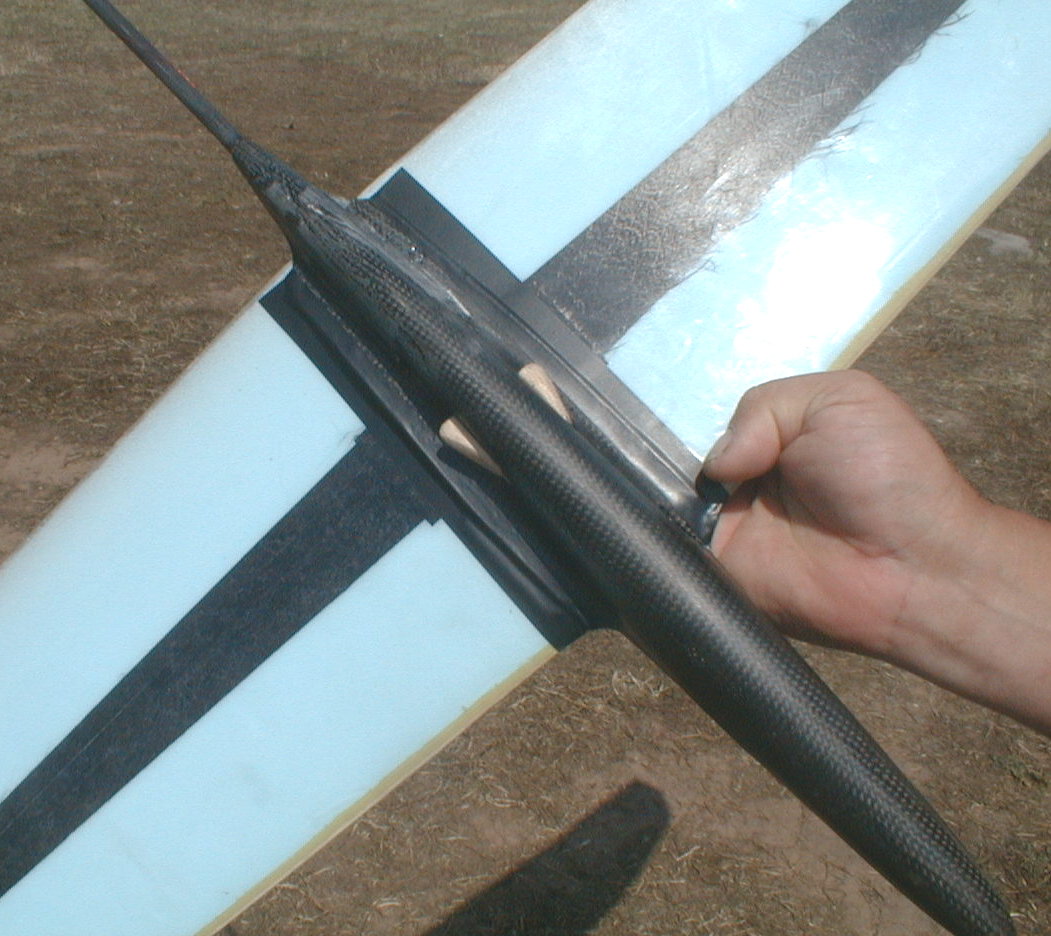

Fuselage Info: Main Fuselage: Carbon Fiber Cloth Tailboom Material: Carbon Fiber Tailboom TE to Elevator Hinge: 18.75" Tailboom TE to Rudder Hinge: 18.75" Tail Group Type: Cross |
Launching Technique: Launch Method: Discus Grip: Wingtip |
Additional Pictures
|
|
|
|
