Plane: Tweener |
Click here to reach: |
| Plane Info: Wingspan: 49" Plane Weight: 10 oz (varies) Wing Area: Sq.In. Wing Type: Polyhedral Wing Info: TESweep: RootChord: 6" FirstBreakChord: 5" FirstPanelLength: 13.25" FirstPanelSweep: 1" ThirdPanelLength: 11.4" ThirdPanelSweep: 2" TipChord: 4" CenterDihedral: 3" FirstBreakDihedral: 2" PolyDihedral: Polyhedral AirfoilRoot: Ag16 AirfoilTip: Ag16 Wing Material: Fiberglass over Pink Foam, CF Caps |
Plane Name Here
|

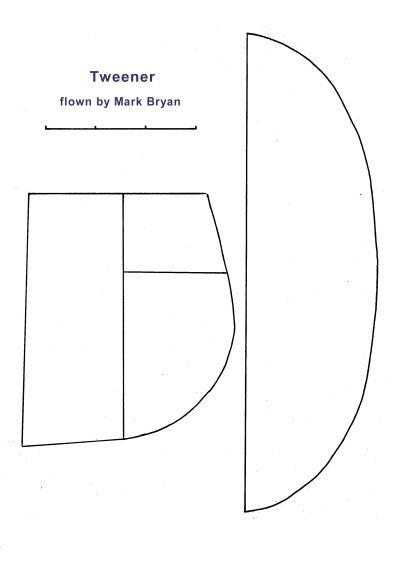

Stab/Elevator Info: Stab Area: 21 sq.in. Stab Root: 2.5" Stab Tip: 2" Stab Span: 9.5" Stab Material: Foam Stab Profile: Flat, Shaped edges, All moving tailplane, Semi-elliptical Rudder Info: Rudder Area: 18 sq.in. Rudder Root: 4.25" Rudder Tip: 3.5" Rudder Span: 4.75" Rudder Material: Balsa Rudder Profile: Flat, Shaped edges R/E Planform: Click Here |
| Radio Info: JR Functions: Rud, Stabilator Servos: MX-30s |
Fuselage Info: Main Fuselage: Molded Kevlar Tailboom Material: Carbon Fiber tube Tailboom TE to Elevator Hinge: 18" full flying Tailboom TE to Rudder Hinge: 19" Tail Group Type: T-tail, All moving |
Launching Technique: Launch Method: Discus Grip: Wingtip Grip |
