International Hand Launch Glider Festival June 2-3, 2001	Plane: Raptor (6 servos) (plane pictured is owned by Joe Wurts) Pilot: Joe Wurts Placing: 1st, Others: Paul Anderson (5th) , Brian Buass (6th),  George Joy (4th), Designer/Manufacturer: Brian Buass RaptorRC	Click here to reach: www.RaptorRC.com

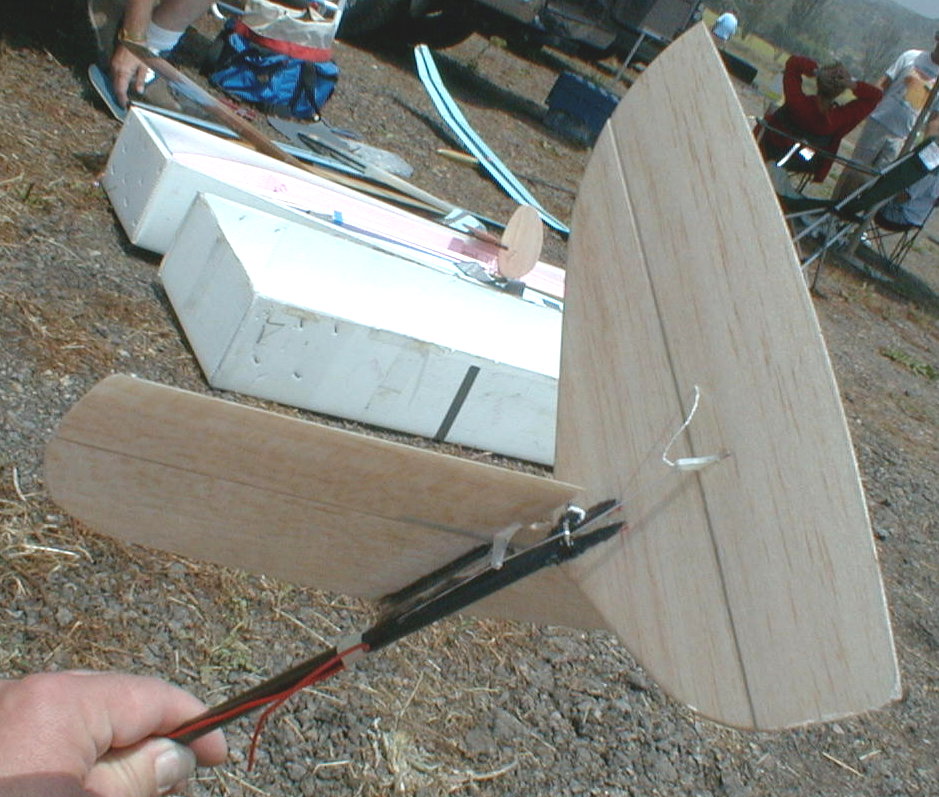

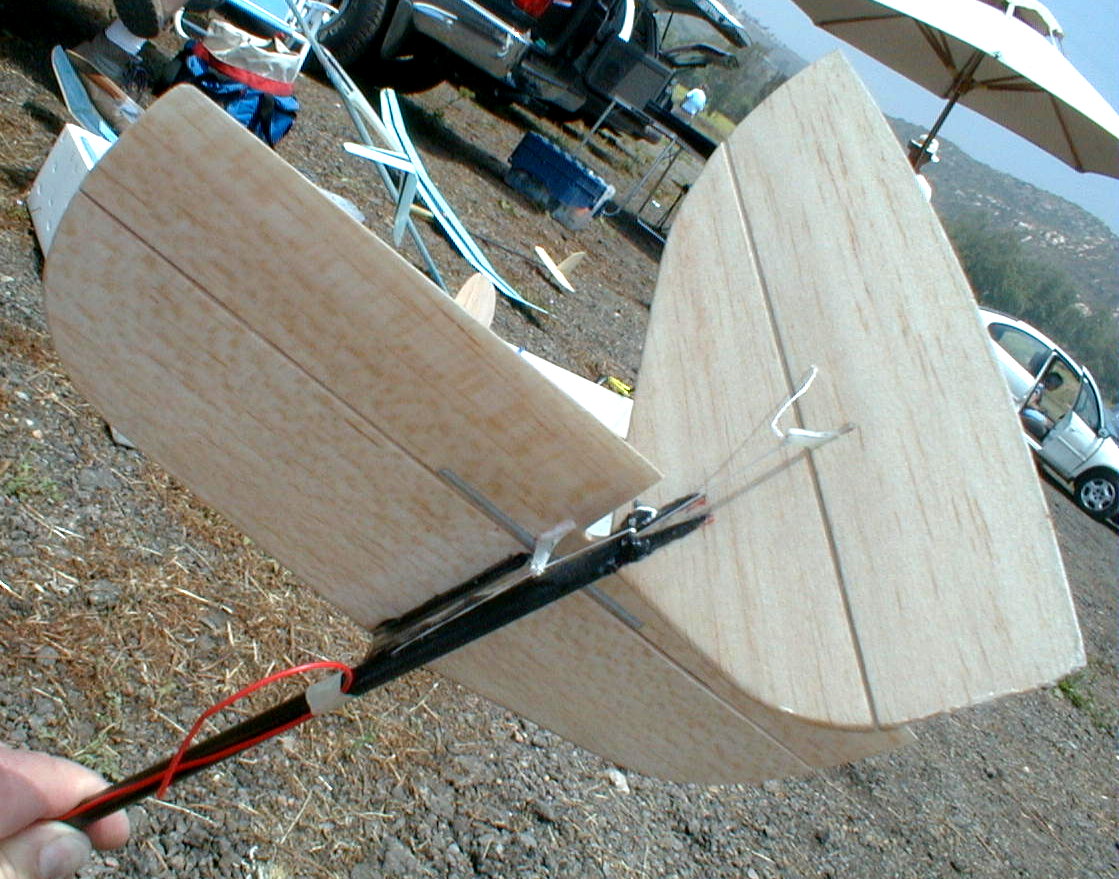

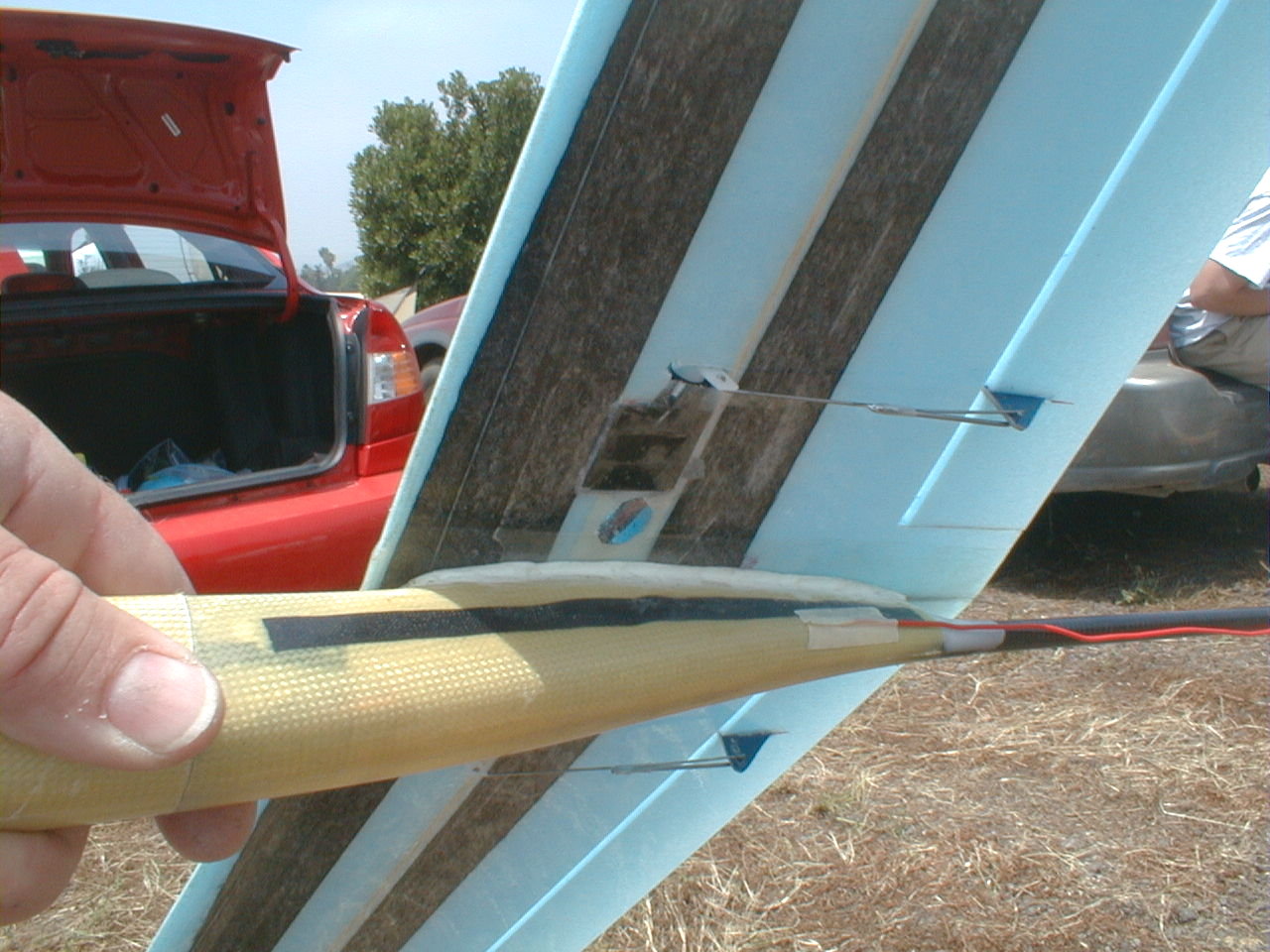

Plane Info: Wingspan: 59" Plane Weight: 11 oz (varies) Wing Area: 350 sq.in. Wing Type: Dihedral Wing Info: TE Sweep: 0.5" Root Chord: 7" First Break Chord: 6.5" First Panel Length: " First Panel Sweep: 0" Second Break Chord: 5.5" Second Panel Sweep: apporx 0.5" Tip Chord: 4" Tip Sweep: approx. 2" Center Dihedral: Approx 5" First Break Dihedral: 5" Poly Dihedral: Dihedral Airfoil Root: JW Airfoil Tip: JW Flap Info: approx 11.5" each Wing Material: 3 x 0.75 oz Fibergalss over Blue Foam, CF Caps	Raptor	Stab/Elevator Info: Stab Area: 35 sq.in. Stab Root: 3.75" Stab Tip: 3" Stab Span: 10.5" Stab Material: Balsa Stab Profile: Flat, Shaped dges Rudder Info: Rudder Area: 22.5 sq.in. Rudder Root: 3.5" Rudder Tip: 2.25" Rudder Span: 7.5" Rudder Material: Balsa Rudder Profile: Flat, Shaped edges R/E Planform: Click Here

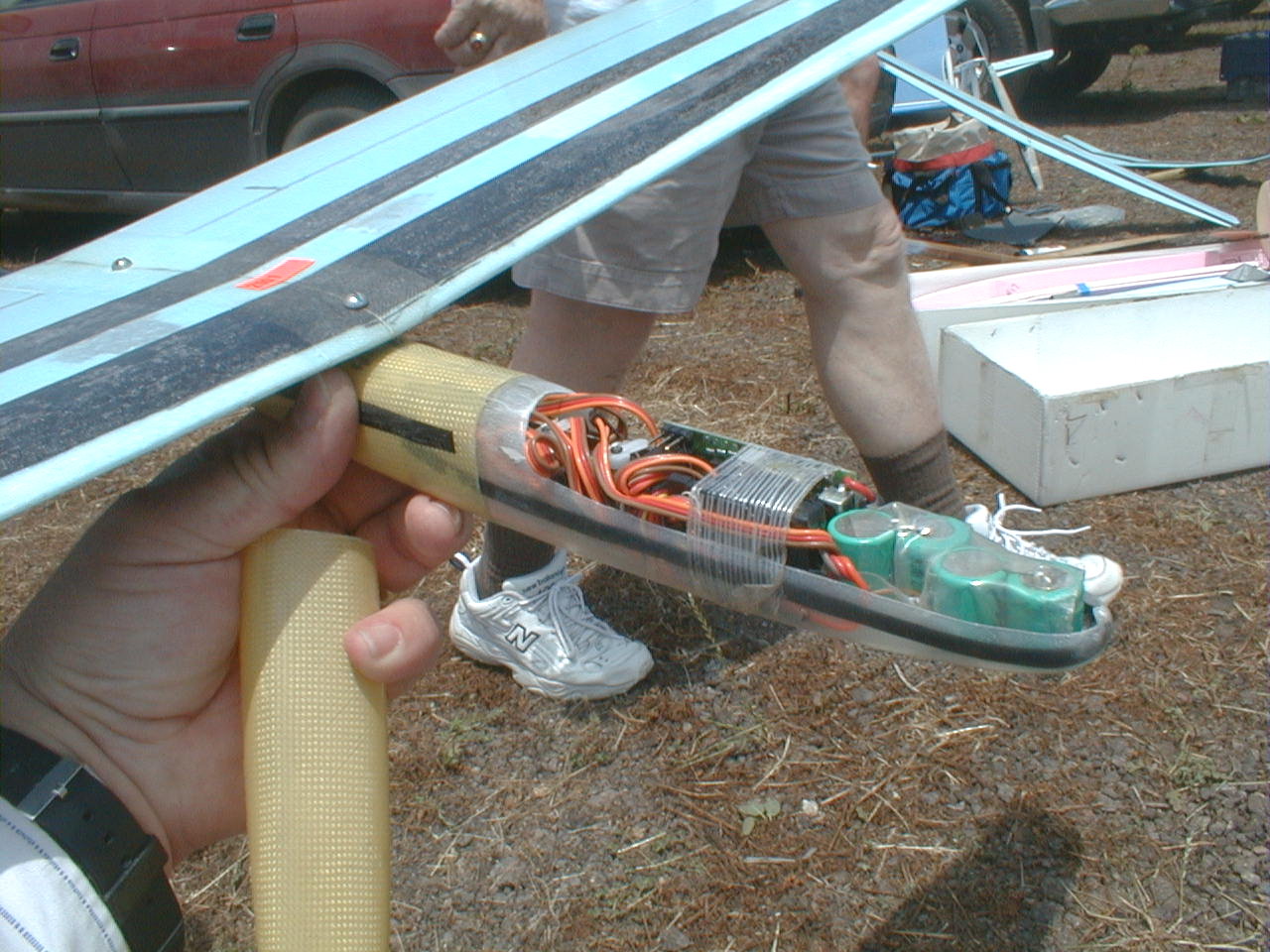

Radio Info: Functions: Rud, Elev, Flaps, Airlerons, Crow Servos: HS-50s, CS-10s	Fuselage Info: Main Fuselage: Molded Kevlar Tailboom Material: Carbon Fiber Tapered Tube Tailboom TE to Elevator Hinge: 22.25" Tailboom TE to Rudder Hinge: 24" Tail Group Type: Conventional, Low tailgroup	Launching Technique: Launch Method: Discus Grip: Wingtip Peg

Additional Pictures
