Plane: SideWinder |
Click here to reach: |
| Plane Info: Wingspan: 59" Plane Weight: 10.5 oz Wing Area: 376 Sq.In. Wing Type: Polyhedral Wing Info: TE Sweep: Straight Root Chord: 7.5" First Break Chord: 6.5" First Panel Length: approx 21" Third Panel Length: 8" Tip Chord: 5" Center Dihedral: 4" First BreakDihedral: 3.5" Airfoil Root: SD 6063 mod Airfoil Tip: SD 6063 mod Wing Material: Fiberglass over Pink Foam |
SideWinder |
Stab/Elevator Info: Stab Area: 78 sq.in. Stab Root: 3.75" Stab Tip: 2.75" Stab Span: 12.5" Stab Material: Balsa Stab Profile: Elliptical, Flat, Shaped edges Rudder Info: Rudder Area: 26.5 sq.in. Rudder Root: 3.5" Rudder Tip: 2, 3" Rudder Span: 7.25" Rudder Material: Balsa Rudder Profile: Elliptical, Flat, Shaped edges

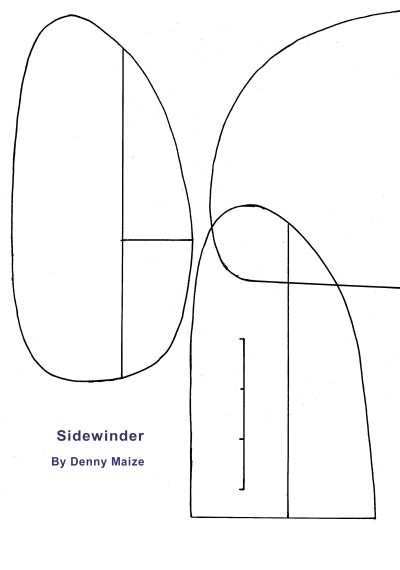

R/E Planform: Click Here |
| Radio Info: RX: 555 Functions: Rud, Elev Servos: JR 241 |

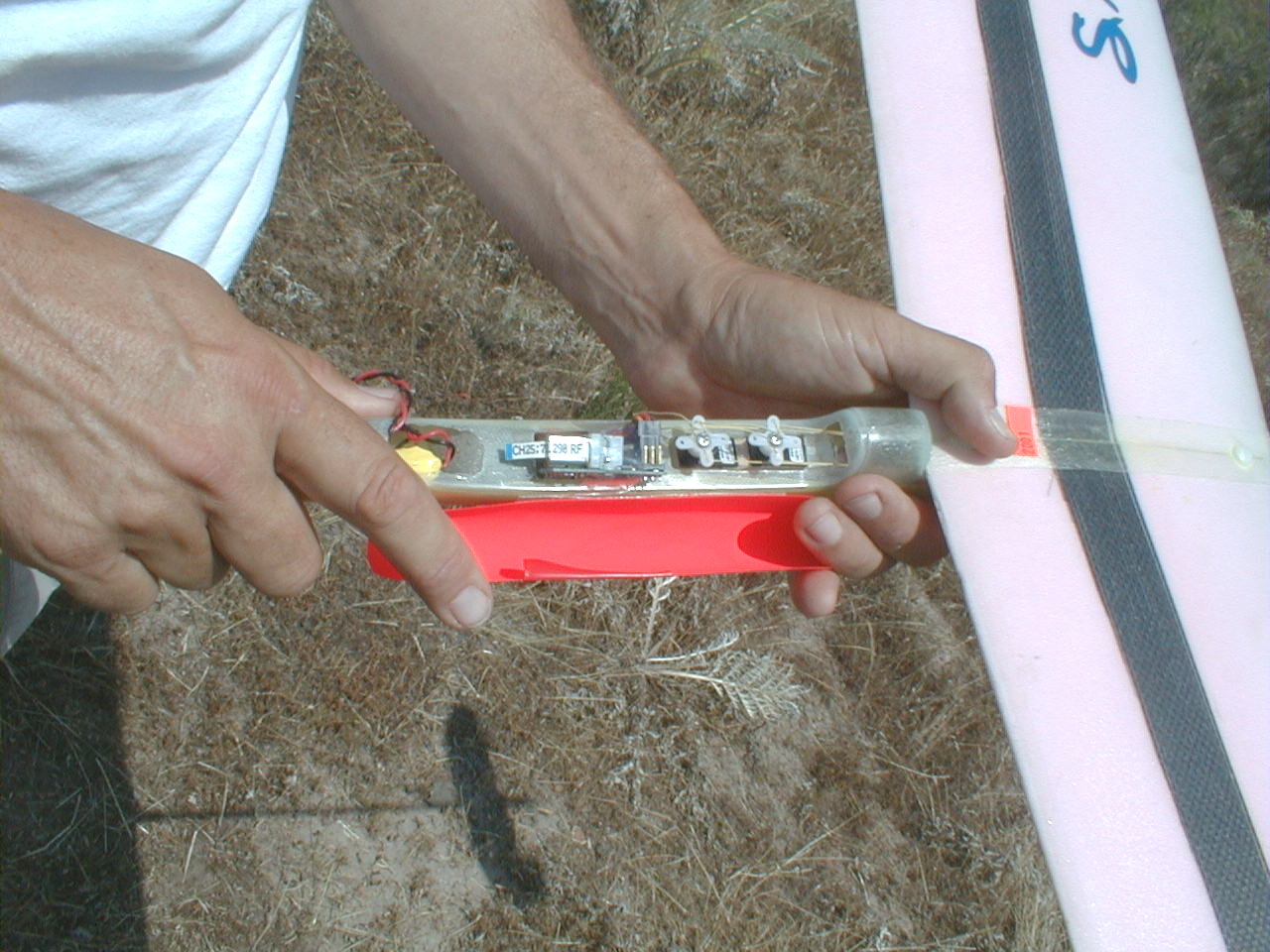

Fuselage Info: Main Fuselage: Fiberglass, Carbon Molded Tailboom Material: Carbon Fiber Tube Tailboom TE to Elevator Hinge: NA" Tailboom TE to Rudder Hinge: NA" Tail GroupType: Conventiona; |
Launching Technique: Launch Method: Discus Grip: Wingtip Grip |

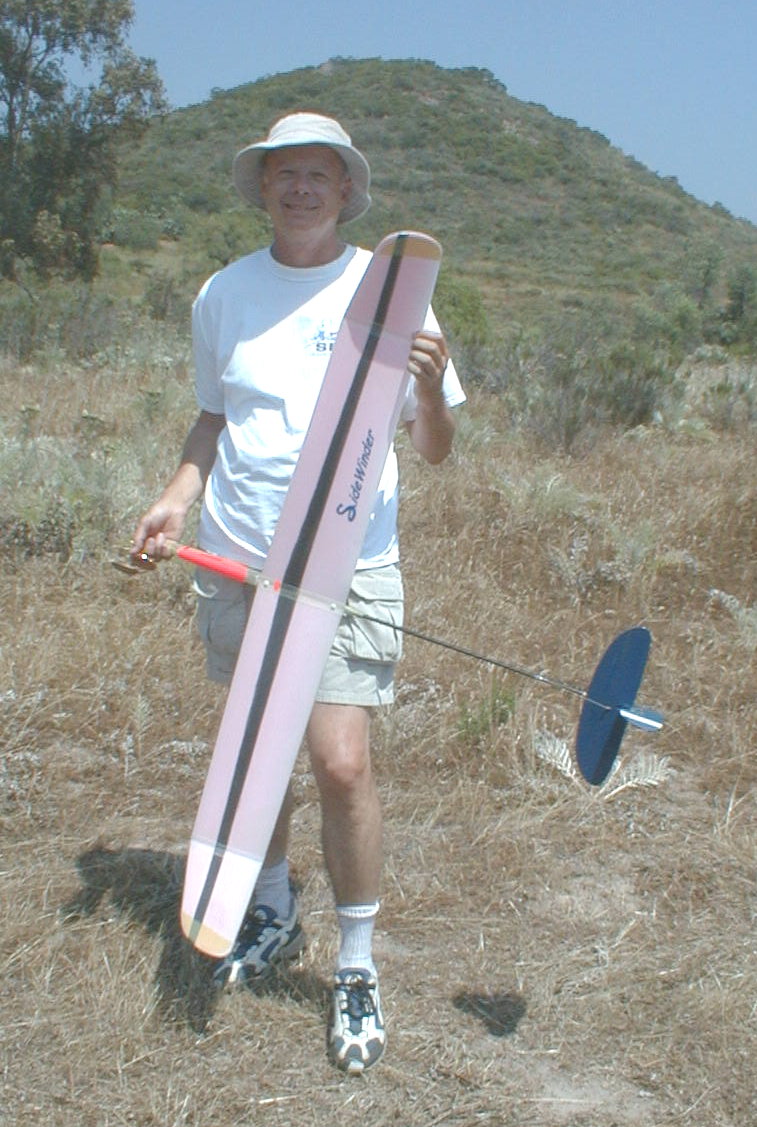

Additional Pictures
|
|
|
