International Hand Launch Glider Festival June 2-3, 2001	Plane: Photon Pilot: Jerry Krainock Placing: 8th Open, 1st Eagle Designer/Manufacturer: Original	Click here to reach: Photon

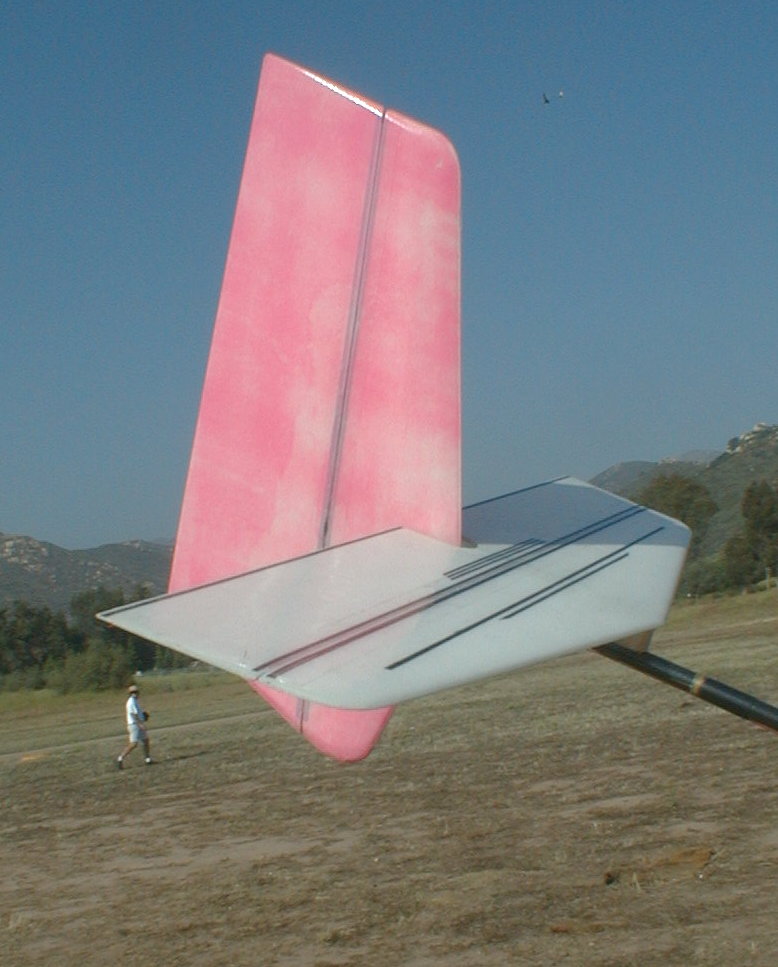

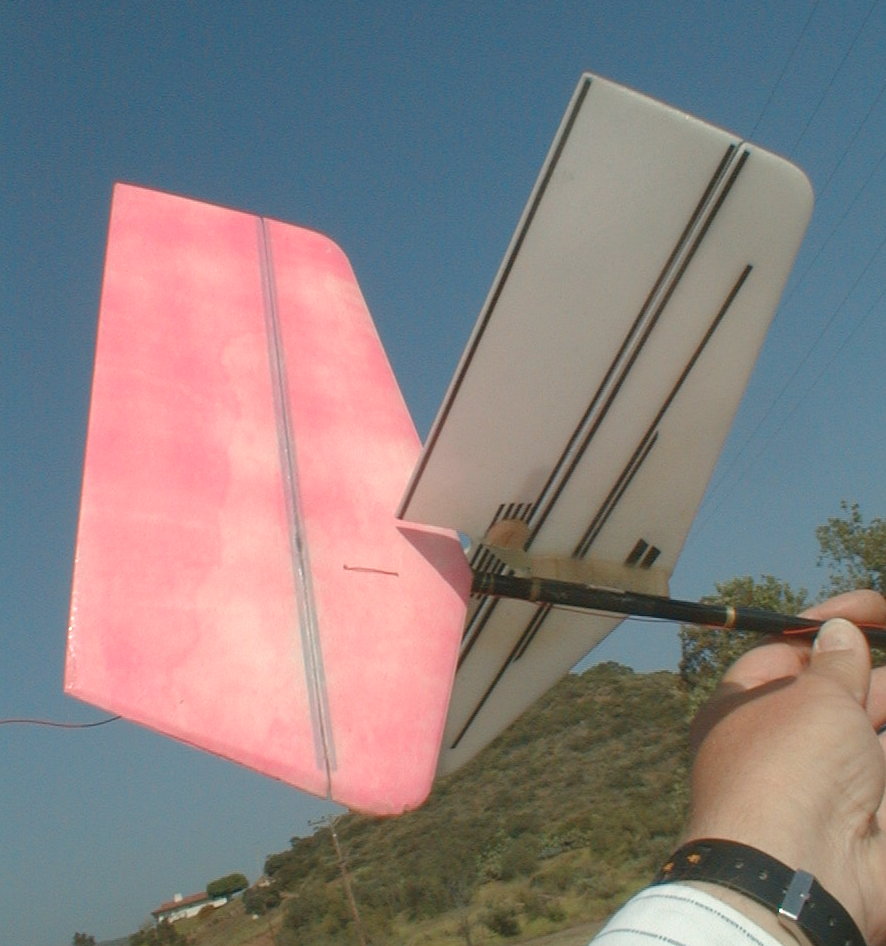

Plane Info: Wingspan: 59" PlaneWeight: 10 oz WingArea: 360 sq.in. WingType: Polyhedral Wing Info: TE Sweep: TE Straight Root Chord: 7" First Break Chord: 6" First Panel Length: 19.5" Second Panel Length: 10.5" Tip Chord: 4.5" Center Dihedral: 2.5 degrees First Break Dihedral: 7 degrees Poly Dihedral: Polyhedral Airfoil Root: Ag16 Airfoil Tip: Ag16 Wing Material: Built up, Kevlar LE shell, CF capped ribs, CF spars with balsa webs, Balsa Ribs, Mylar covering	Photon	Stab/Elevator Info: Stab Area: 53 sq.in. Stab Root: NA Stab Tip: NA Stab Span: 15.5" Stab Material: CF, Foam Stab Profile: Airfoil Shaped , Flat bottomed, lifting Rudder Info: Rudder Area: 45 sq.in. Rudder Root: 10" Rudder Tip: NA Rudder Span: NA Rudder Material: CF, Foam Rudder Profile: Airfoil Shaped , Flat bottomed, lifting toward outside of discus circle. Tail Group Mount: Hard R/E Planform: Not Available
Radio Info: RX: 555 Functions: Rud, Elev Servos: HS-55 Holds  National Record Claimed.  1.5 Meter Duration: 2:17:52	Fuselage Info: Main Fuselage: Carbon Fiber Cloth, Pre-preg Tailboom  Material: Carbon Fiber tapered boom Tailboom TE to Elevator Hinge: 22.5" Tailboom TE to Rudder Hinge: 26" Tail GroupType: Conventional	Launching Technique: Launch Method: Discus Grip: Wingtip Grip

Additional Pictures
