Plane: XTerminator Pro Poly |
Click here to reach: |
| Plane Info: Wingspan: 59" PlaneWeight: 10 oz WingArea: 318 Sq.In. WingType: Polyhedral Wing Info: TE Sweep: Root Chord: 7.25" First Break Chord: 6.5" First Panel Length: 12" Second Break Chord: 5.5" Tip Chord: 3.5" Center Dihedral: 1" First Break Dihedral: 1.5" Second Break Dihedral: 1.5" Poly Dihedral: Polyhedral Airfoil Root: SD 7080 Airfoil Tip: SD 7080 Wing Material: 1.7 oz Kevlar over Pink Foam |
XTerminator Pro Poly |

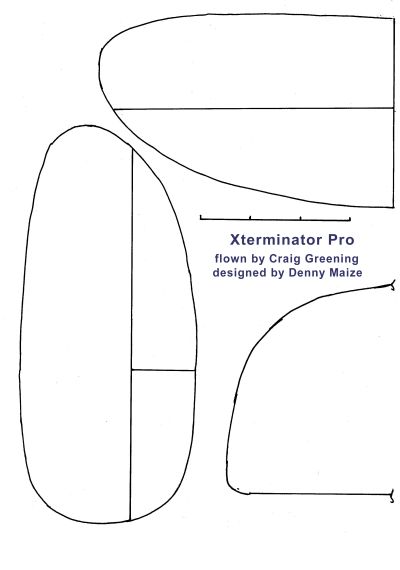

Stab/Elevator Info: Stab Area: 39 sq.in. Stab Root: 3.75" Stab Tip: 2.25" Stab Span: 13" Stab Material: Balsa Stab Profile: Elliptical, Flat, Shaped edges Rudder Info: Rudder Area: 24 sq.in. Rudder Root: 3.5" Rudder Tip: 3.0, 2.25" Rudder Span: 8" Rudder Material: Balsa Rudder Profile: Elliptical, Flat, Shaped edges Tail Group Mounting: Fixed R/E Planform: Click Here |
| Radio Info: RX: 555 Functions: Rud, Elev. Servos: JR 241 |

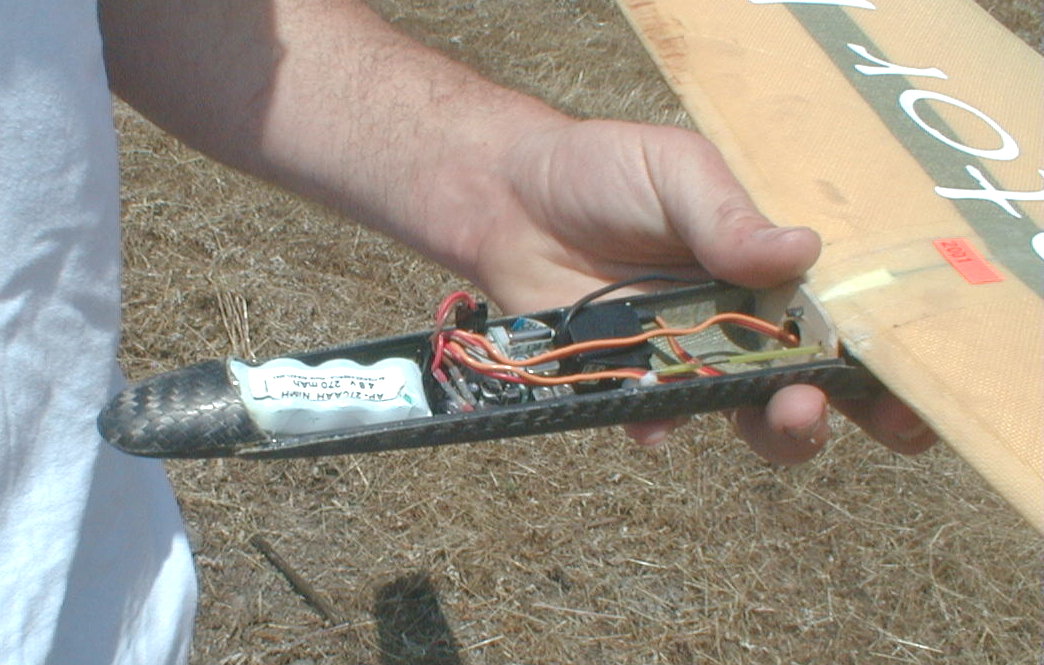

Fuselage Info: Main Fuselage: Carbon Fiber/Kevlar Molded Tailboom Material: Carbon Fiber Allegra Tapered Tube Tailboom TE to Elevator Hinge: 20.5" Tailboom TE to Rudder Hinge: 23.75" Tail Group Type: Conventional, Low |
Launching Technique: Launch Method: Discus Grip: Wingtip Grip,Finger Peg |
Additional Pictures
|
|
|
|
