Plane:Watson Sidewinder |
Click here to reach: N/A |
| Plane Info: Wingspan: 59" Plane Weight: 10 oz (varies) Wing Area: Varies 340-360 Sq.In. Wing Type: Polyhedral Wing Info: TE Sweep: Straight Root Chord: 7" First Break Chord: 6" First Panel Length: 20.5" First Panel Sweep: 1" Second Break Chord: 4.5" Second Panel Length: 9.75" Tip Chord: 4.5" Center Dihedral: 6 degrees First Break Dihedral: 23 degrees Poly Dihedral: 23 degrees Airfoil Root: Ag16 Airfoil Tip: Ag16 Flap Info: 10", 1.75"-1.25" Wing Material: Fiberglass over Spyder Foam |

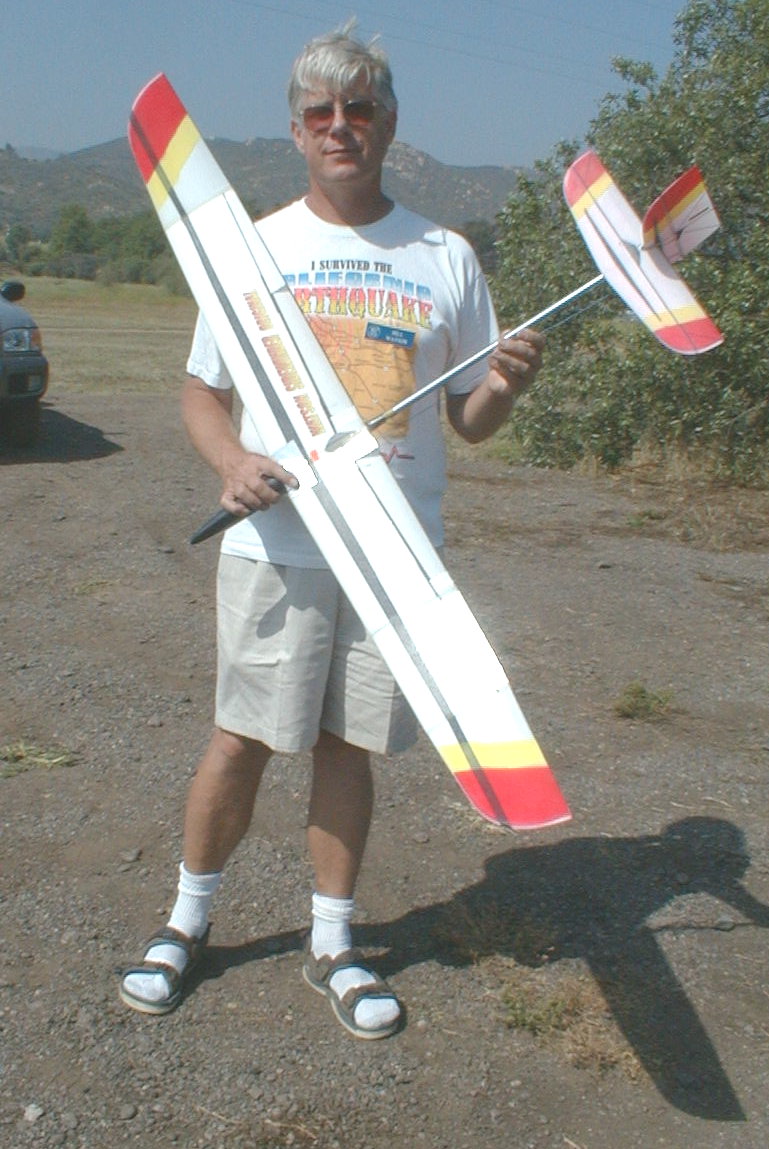

Watson Sidewinder
|
Stab/Elevator Info: Stab Area: 56 sq.in. Stab Root: 4" Stab Tip: 3" Stab Span: 16" Stab Material: Spyder Foam Stab Profile: HT10 Rudder Info: Rudder Area: 45 sq.in. Rudder Root: 5.75" Rudder Tip: 3.5" Rudder Span: 9.75" Rudder Material: Spyder Foam Rudder Profile: HT10 R/E Planform: Not Available |
| Radio Info: 6 meters Functions: Rud,Elev,Flaps Servos: HS-55s |

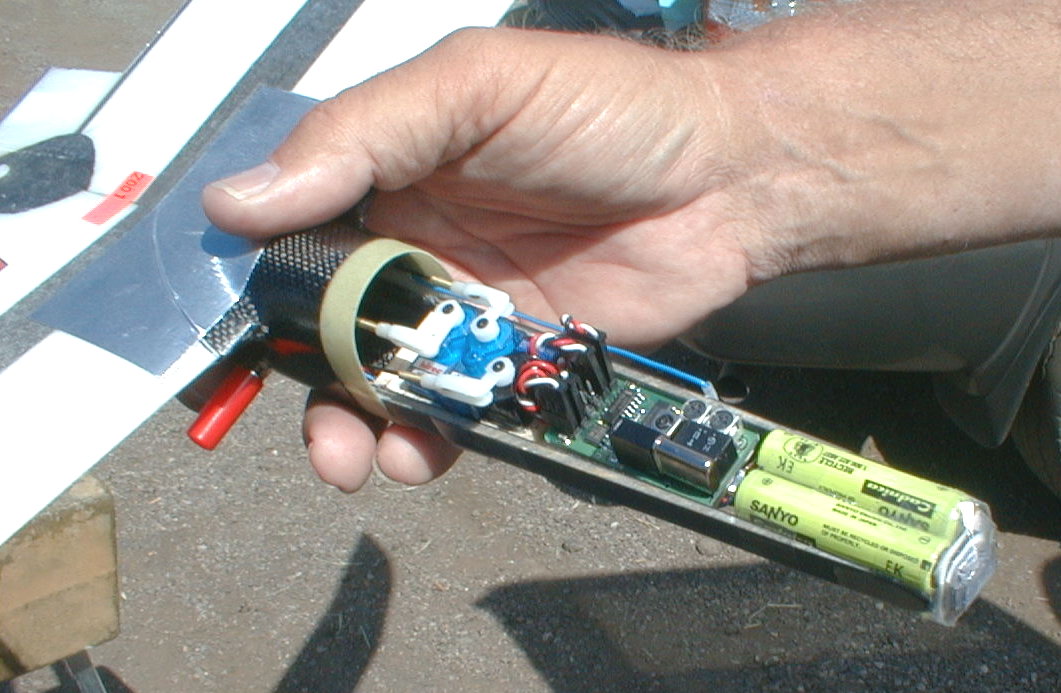

Fuselage Info: Main Fuselage: Carbon Fiber Cloth/Prepreg Molded Tailboom Material: Carbon Fiber, Aluminum Laminate Tube Tailboom TE to Elevator Hinge: 20" Tailboom TE to Rudder Hinge: 23" Tail Group Type: Conventional, Low tailgroup |
Launching Technique: Launch Method: Discus Grip: Wingtip Grip |

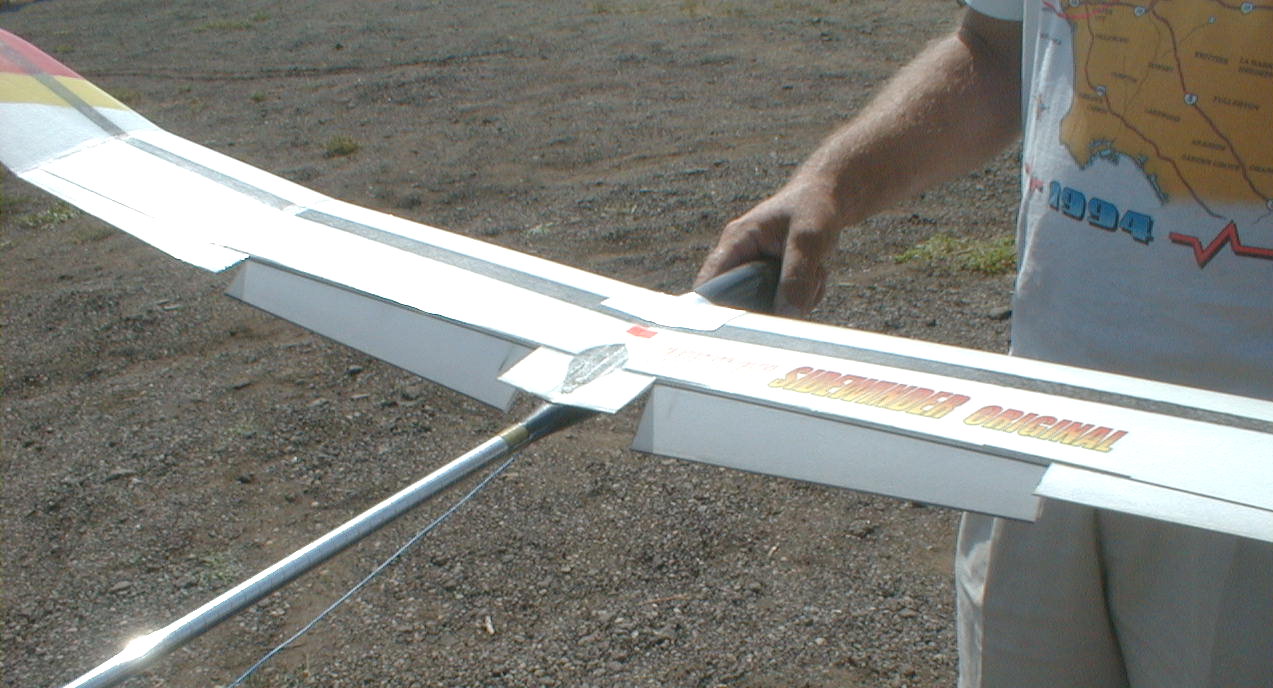

Additional Pictures
|
|
|
|
|
|
|
|
