Plane: Terminator |
Click here to reach: |
| Plane Info: Wingspan: 59" Plane Weight: 8 oz Wing Area: 360 sq. in. Wing Type: Polyhedral Wing Info: TE Sweep: Root Chord: 7" First Break Chord: 7" First Panel Length: 20" Second Panel Length: 20" Tip Chord: 5" Center Dihedral: 0" First Break Dihedral: 4" Poly Dihedral: Polyhedral Airfoil Root: BK2001(Blended 6063/7080) Airfoil Tip: BK2001(Blended 6063/7080) Wing Material: Fiberglass over Blue Foam |
Plane Name Here |

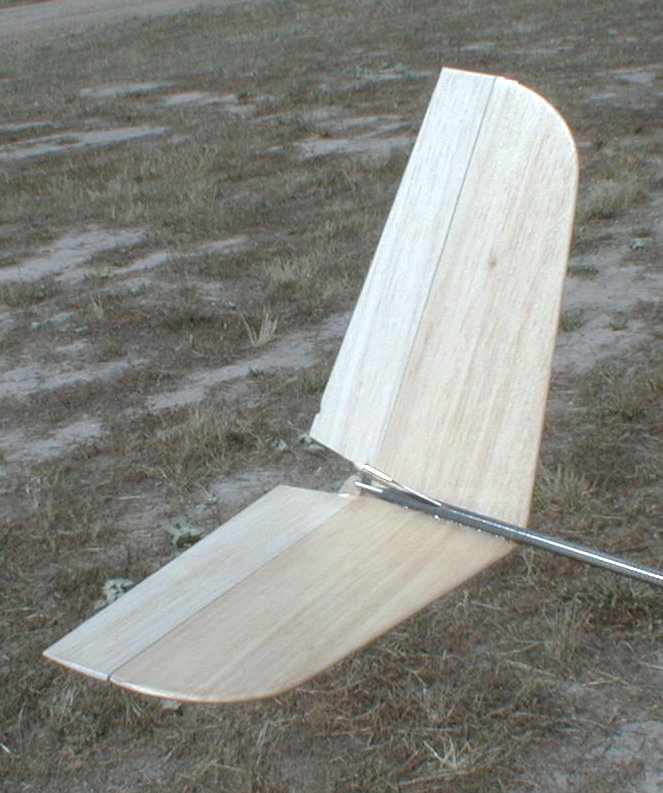

V-tail Info: Area: 56 sq.in. Root: 4.5" Tip: 3" Surface Length: 7.5" Material: Balsa Profile: Flat, Shaped Edges

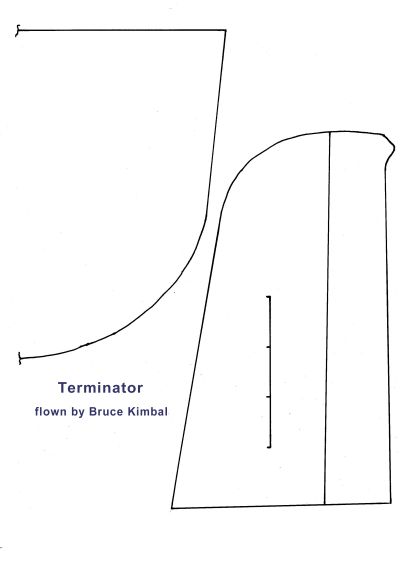

R/E Planform:
Click Here |
| Radio Info: RX: Berg Functions: Rud Elev (Elevons Servos: CS-21s |
Fuselage Info: Main Fuselage: Tailboom Material: Carbon Fiber Tailboom TE to Elevator Hinge: " Tailboom TE to Rudder Hinge: " Tail GroupType: V-Tail |
Launching Technique: Launch Method: Overhand/Javalin Grip: Finger hole |
| Construction Techniques:Wing 1.5 oz layer, 5" doubler on top center, 3" doubler on botttom center 3" doublers on tip and at tip grip area | ||

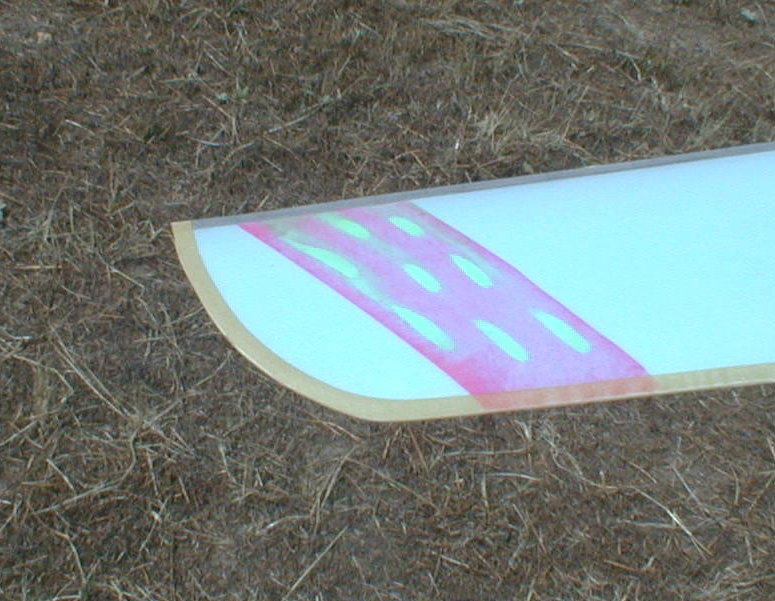

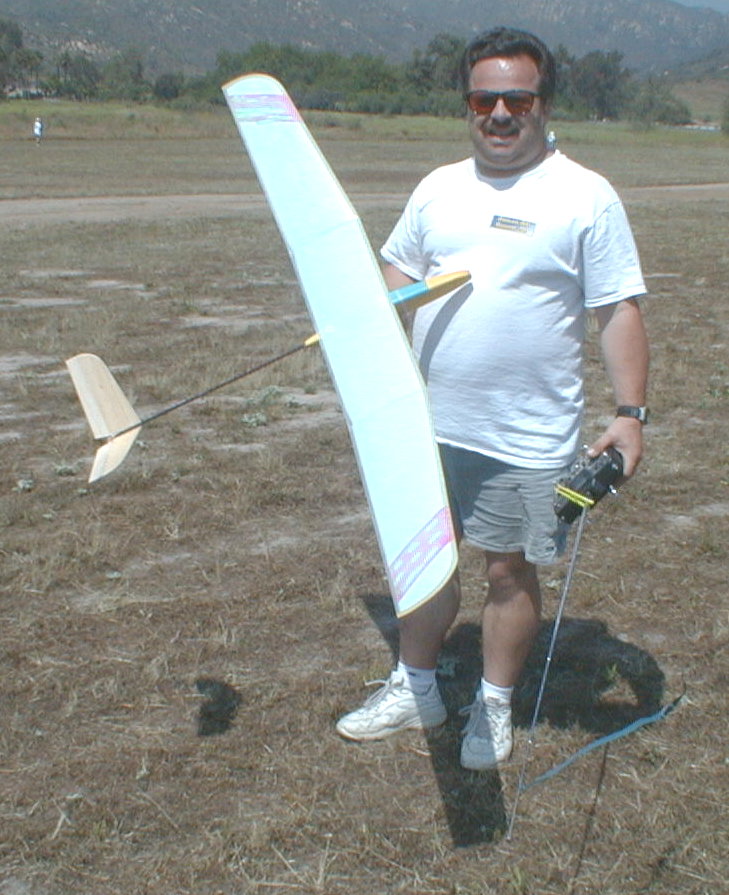

Additional Pictures
|
|
|
