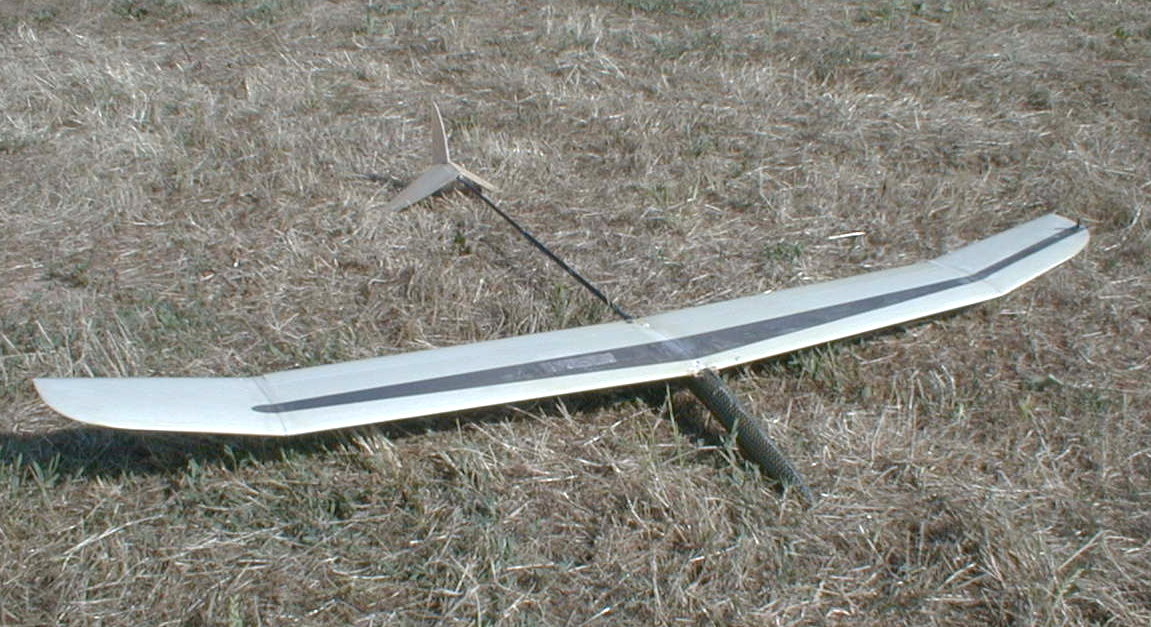

Plane: Flamingo (modified) |
Click here to reach: |
| Plane Info: Wingspan: 59" PlaneWeight: 10.1 oz WingArea: 325 sq.in. WingType: Polyhedral Wing Info: TE Sweep: Root Chord: 7" First Break Chord: 6" First Panel Length: approx 21" Second Panel Length: 8.5" Tip Chord: 5" Center Dihedral: 4" First Break Dihedral: 1.5" Poly/Dihedral: Polyhedral Airfoil Root: 6063 Airfoil Tip: 6063 Wing Material: Fiberglass over Gray Foam |
Flamingo (modified) |

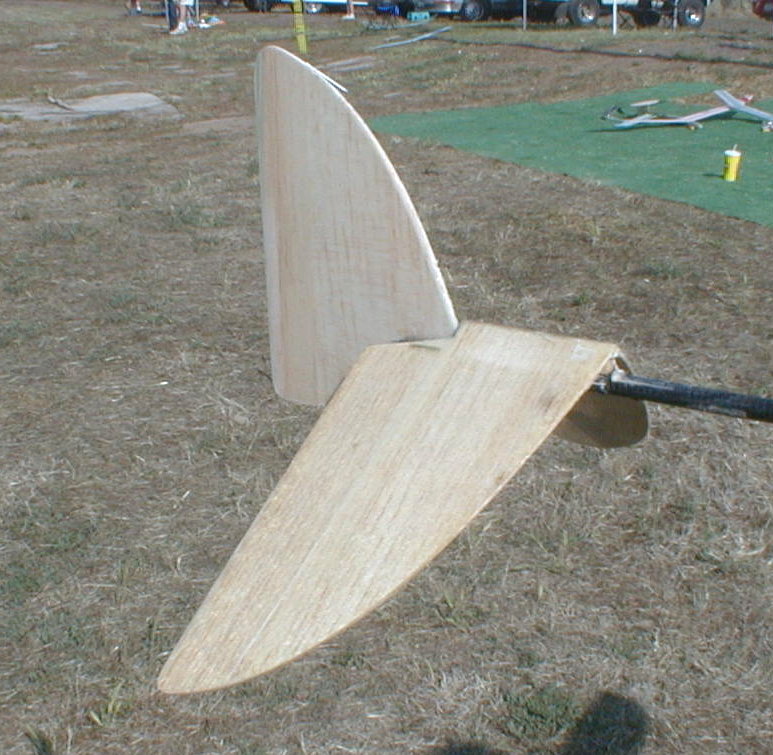

Stab/Elevator Info: Stab Area: 30 sq.in. Stab Root: 3.5" Stab Tip: 1.5" Panel Span: 6" Stab Material: Balsa Stab Profile: Flat, Shaped edges Rudder Info: Rudder Area: sq.in. Rudder Root: 3.5" Rudder Tip: 1.5" Rudder Span: 4.5" Rudder Material: Balsa Rudder Profile: Flat, Shaped edges R/E Planform: Click Here |
| Radio Info: Functions: Elev, Flaperons (no Rudder) Servos: NA |
Fuselage Info: Main Fuselage: Carbon Fiber Cloth Tailboom Material: Carbon Fiber Tube Tailboom TE to Elevator Hinge: 26.5" TailboomTE to Rudder Hinge: NA Tail Group Type: Inverted V-Elevator, Fixed Rudder |

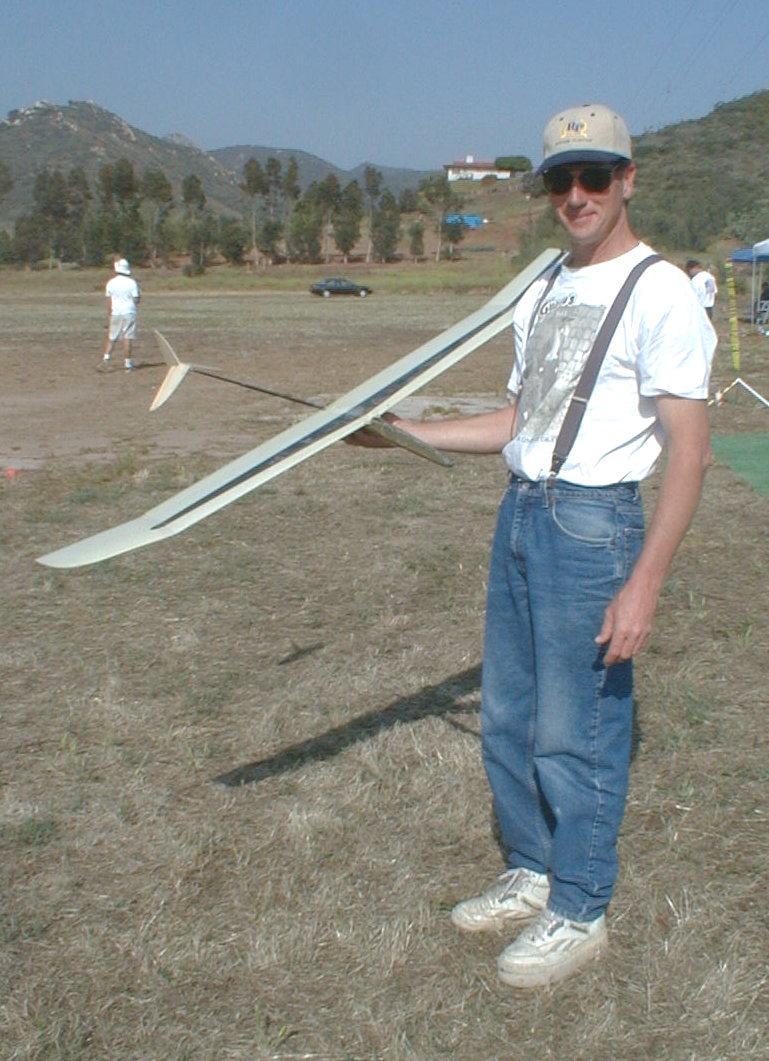

Launching Technique: Launch Method: Discus Grip: Wingtip Peg |
